Mini Printer and Portable Printer Connection Guide

MIINI PRINTER: T02, M02, M02 PRO, M02S, M03, M04S, M03AS, M04AS,

M02X, M02L,

PORTABLE PRINTER: M832, M08F, P831, TP81, G831, Q302, TP82, M833,

M835, TP83, P832, M834, S821

Overview of applicable printers

MINI PRINTER

Mini Printer only compatible with Phomemo App.

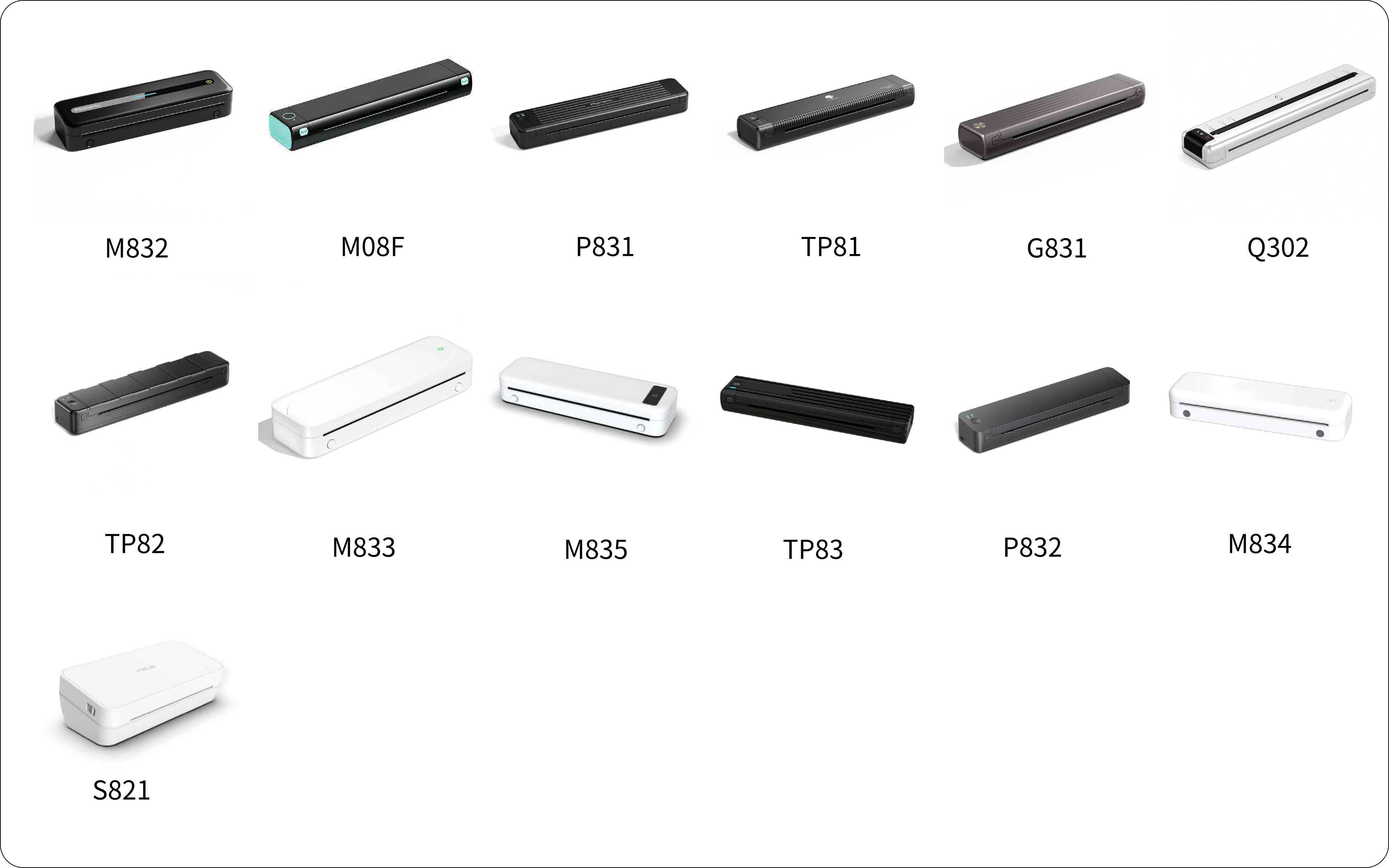

PORTABLE PRINTER

How to connect with Phomemo

In particular, for the M832, M08F and M08F-WS printers, please refer to the specific connection videos:

Phomemo M832 Quick Start Guide丨Roll Paper Installation丨Phomemo App Setup Manual

Phomemo M08F Setup Quick Guide丨Thermal Paper Installation丨App Connection Setup

Phomemo M08F Tattoo Printer Setup Guide: Tattoo Stencil Paper Installation丨App Connection Setup

1. Placement of printing paper

Click here to learn how to install

2. turn on your printer and Charge

Press and hold the power button to power on，

Then charge it via the supplied charging cord.

Note: If the power adapter is used,

it needs to be compatible with 5V/2A,

otherwise it may cause damage to the printer.

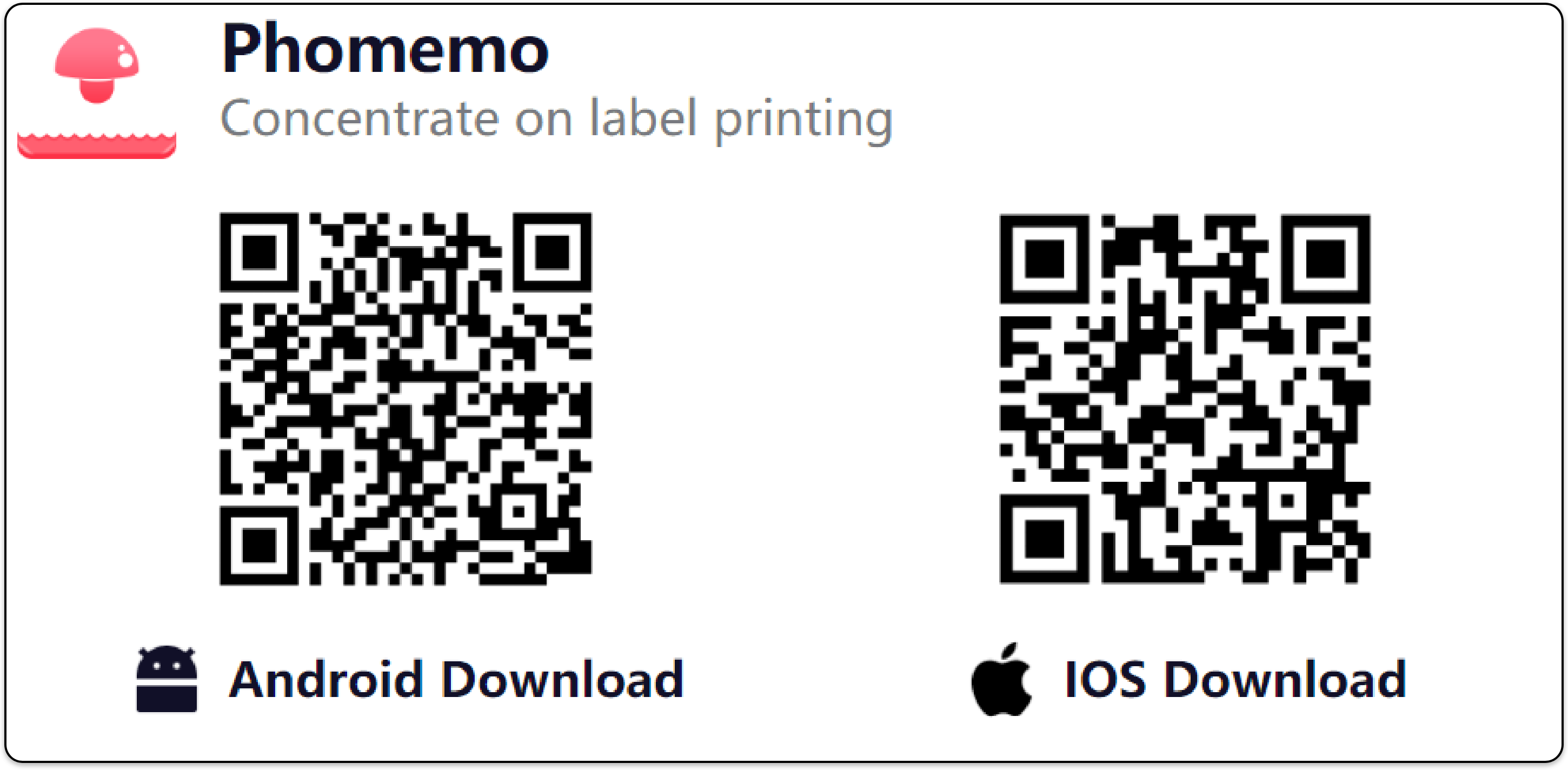

3. Phomemo App Download

Scan the QR code to get the app

Download link:

Android: https://oss.qu-in.life/apk/PrintMaster.apk

IOS: Phomemo on the App Store (apple.com)

4. Turn on your phone's Bluetooth

Depending on the requirements of Ios or Android,the Bluetooth functionality may require the following permissions：

Ios:

location, photos, bluetooth, camera, network permissions.

Android:

location, camera, storage space, network permissions.

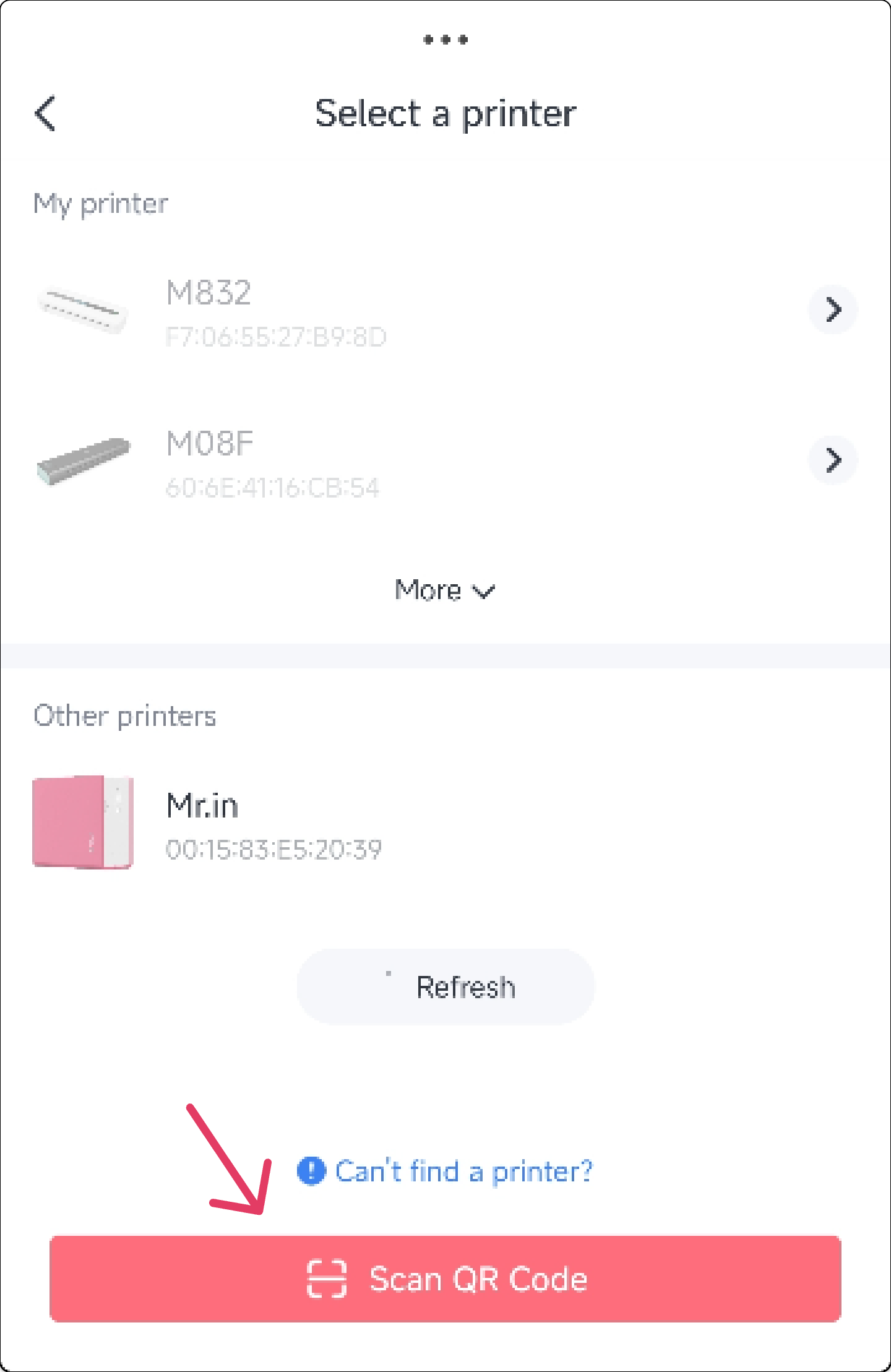

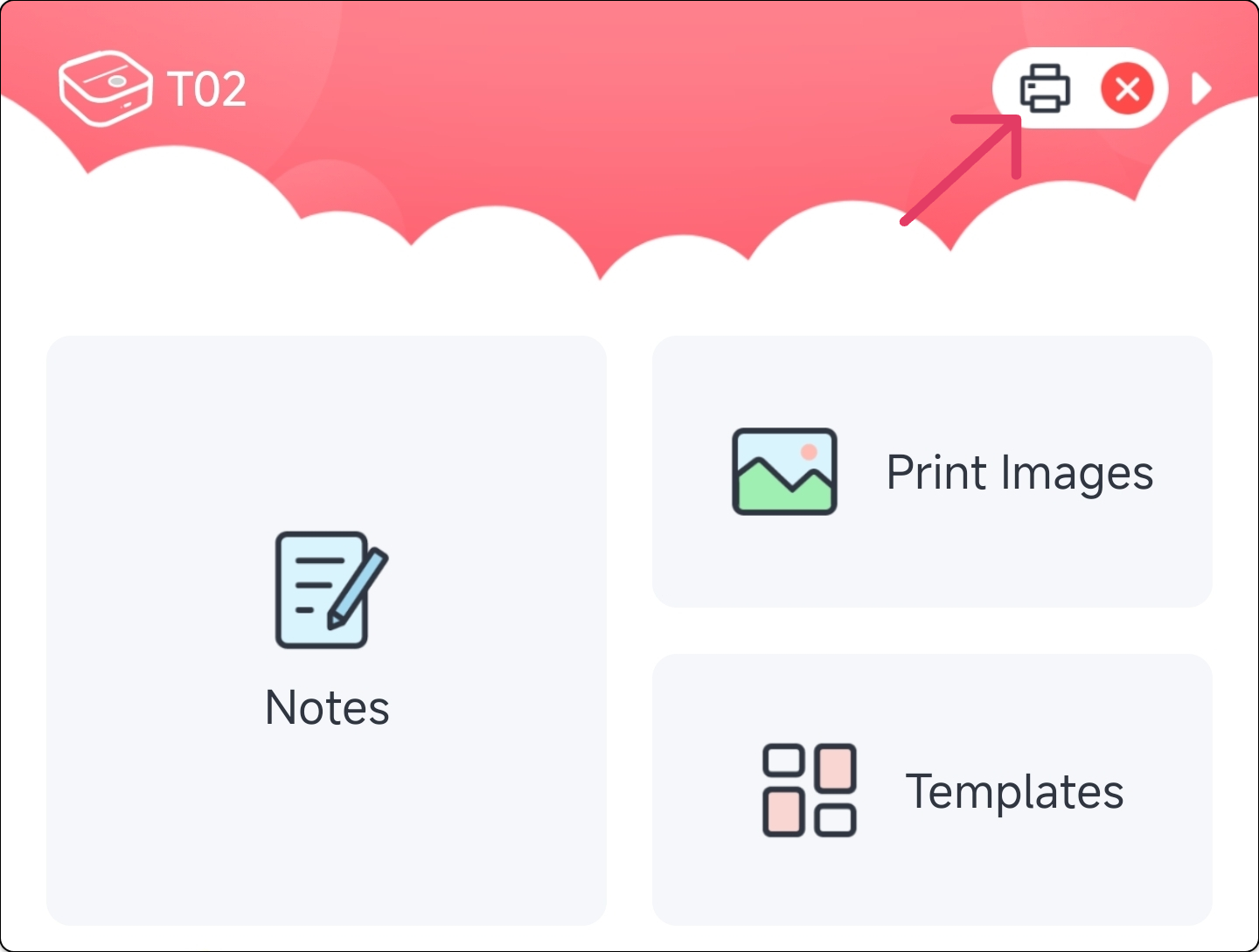

5. Open the Phomemo App and go to the Connection Page

We can find the connect button in the top right corner of the homepage

Click on the QR code，and will connect to the printer

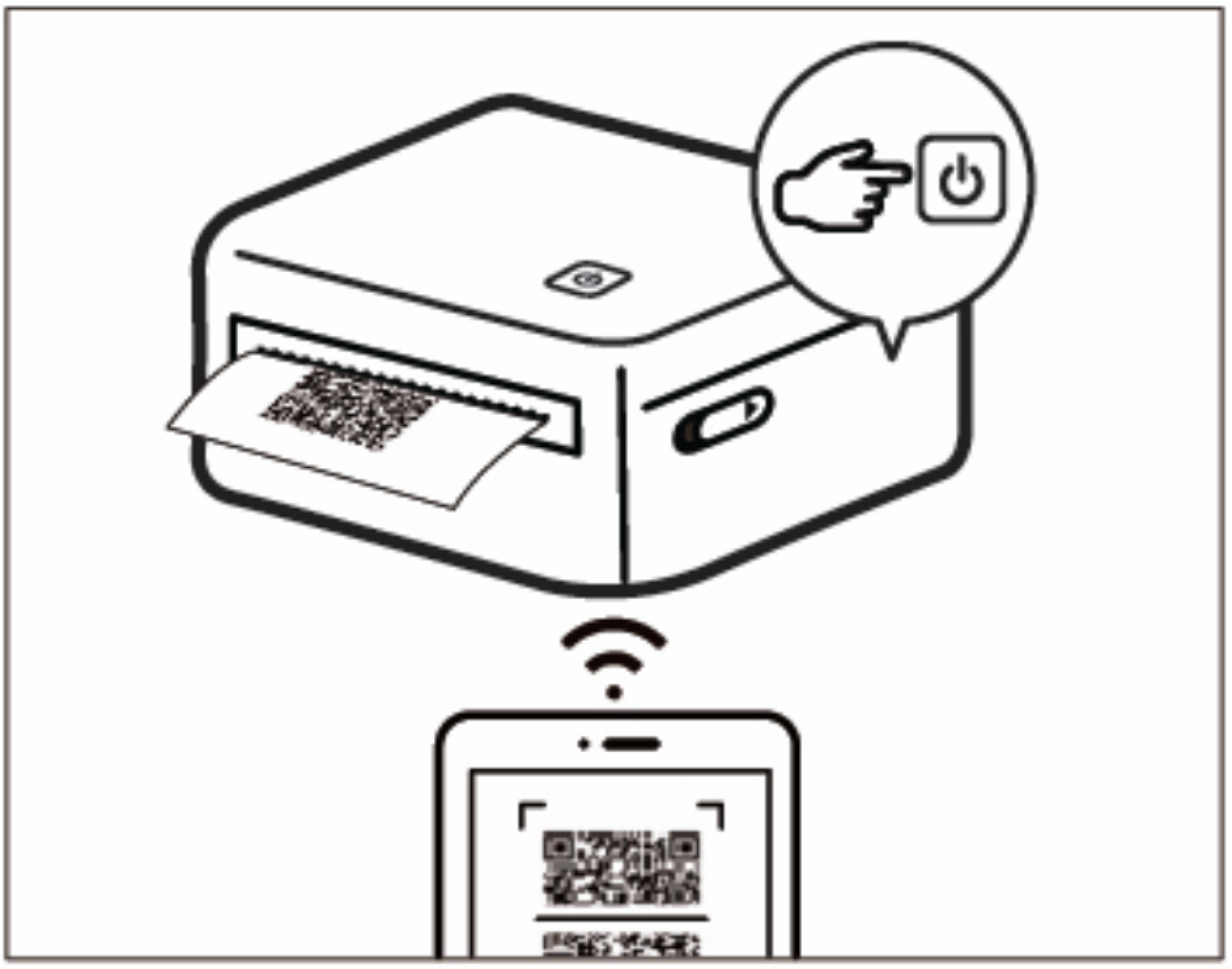

6. Scan for connect

With paper Place, double-click the power button and the printer will spit out the QR code.

Then scan the code with your mobile phone, and it'll connect.

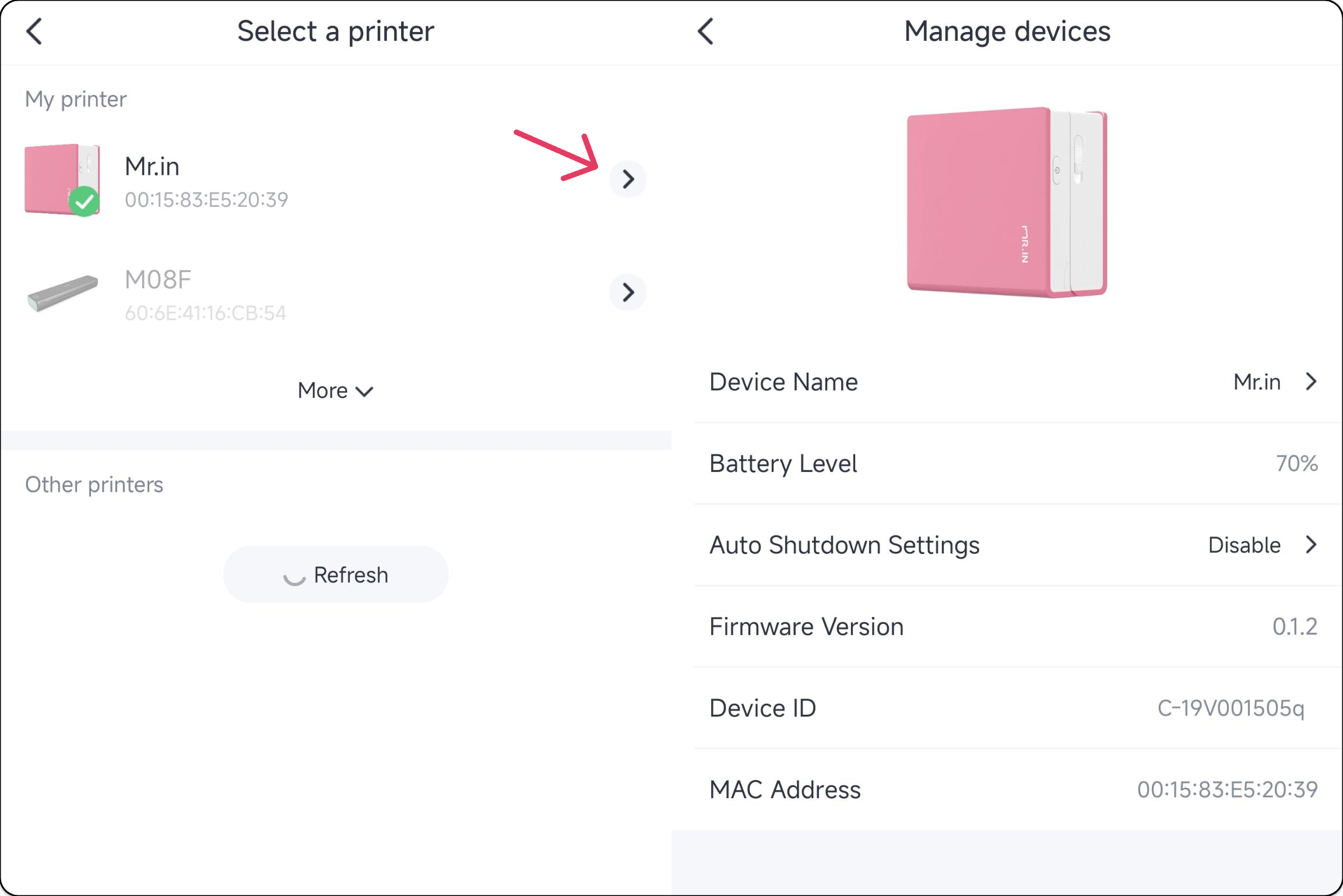

7. Confirm the remaining power of the printer

Go back to the Bluetooth Connections page and locate our connected printer.

Select it, and we'll be able to check its remaining battery level and more information about the hardware.

8. Instructions for using the software functions

Click hereto check the features of Phomemo App!

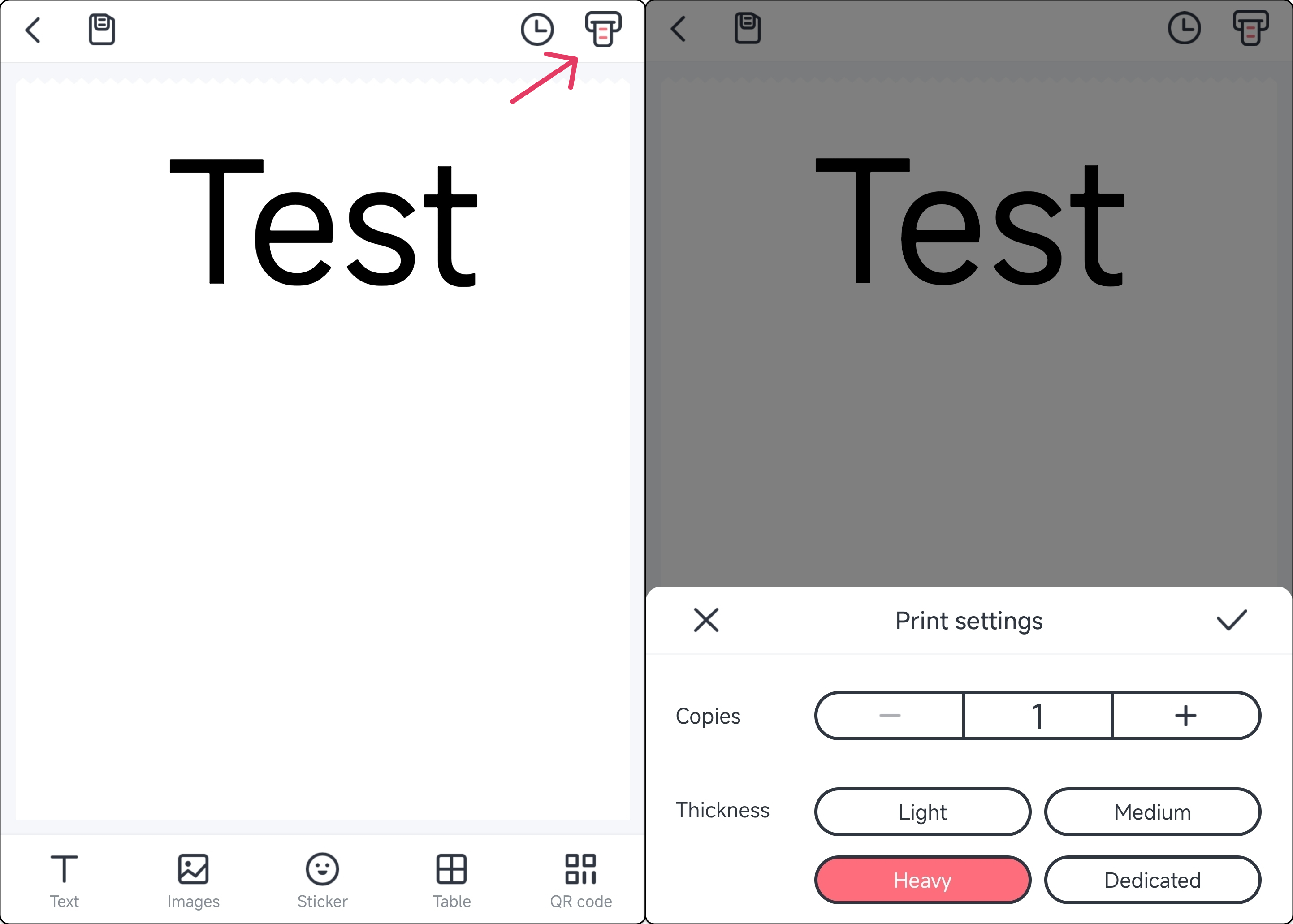

9. Print Test

Edit your favourite content and test print results

How to connect with computer

1. Placement of printing paper

Click here to learn how to install

2. Download and install the Driver

Visit the download page on the official Phomemo website

Offical website link: https://phomemo.com/pages/drivers

Search for the printer model and find your required driver

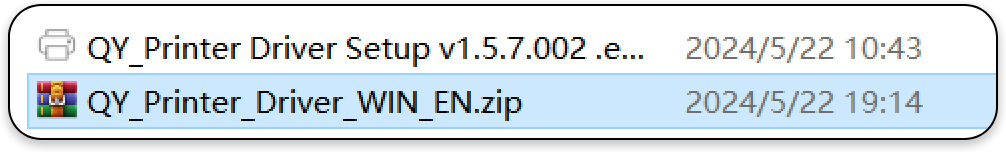

Unzip the driver zip package, Then run "QY_Printer Driver Setup", it will be installed automatically

Note: The printer should be power on and connected to the computer when installing the driver and software.

3.Print test

Open the software on your computer that has the printing function, find your printer and try to print.
